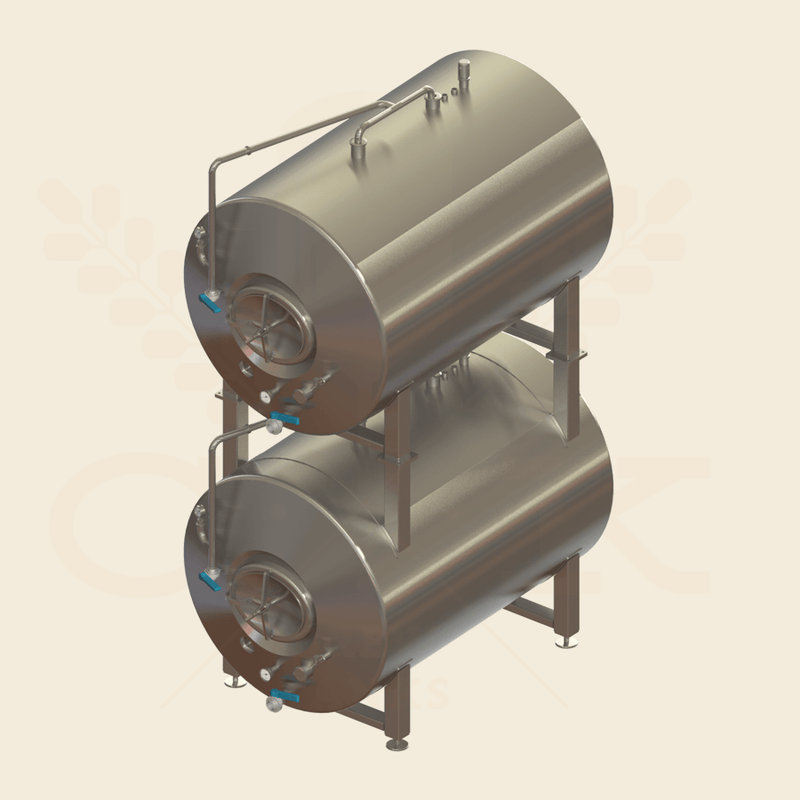

10 BBL | Lagering Vessel | Jacketed & Insulated, Stackable
by Craft Kettle
SKU LG-JI-BBL-010-STD-BOTTOM
- Details
- Specifications
-
· stackable design for space saving
· multi-zone glycol dimpled cooling jackets
· slotted, rotary spray-ball CIP w/ 360° coverage
· ½” NPT sanitary thermowell
· optional spring-loaded RTD
· sample port with perlik style valve
· pressure / vacuum relief valve ("PRV")
· all butterfly valves included -
· 15 psi operating pressure uni-tank, tested to 30 psi
· AISI 304 stainless steel, TIG weld construction
· 11-gauge interior / 14-gauge cladding or equivalent
· 3A standard 32 μin Ra (0.8 μm Ra) finish
· reinforced stainless steel legs, w/ leveling foot pads
· pressure-rated shadowless manway
